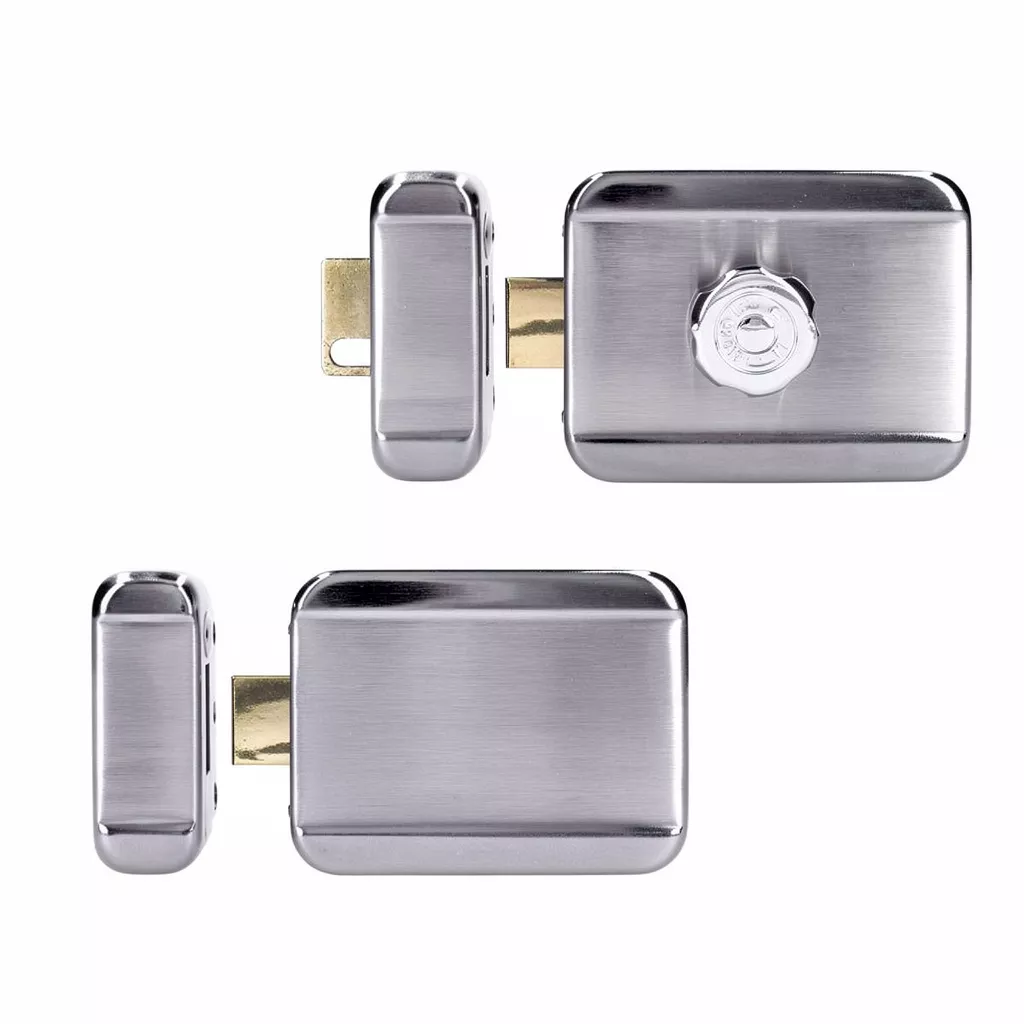

MV Motorised Electric Deadbolt
MV Motorised Electric Deadbolt
Provides electronic deadlocking to suit a wide range of applications.
Suitable for external and internal use.
Widely used on external gates, the Motorised Bolt are equally equipped to lock heavy duty doors, cages etc. and include a circular key cylinder with 3 keys which will fit door/gate thickness of 40-90mm.
The MV series is supplied without manual override (MVA) or with manual override (MVM) – the units are non-handed so are suitable for left or right side opening.
Nylon gears ensure a smooth, silent and rust-free operation, while the varnish coating on the electronics ensure the suitability for external use.
An audible signal is generated if there is a locking error, a sensor between the lock and keeper provides the alignment trigger to automatically drive the deadbolt.
This surface mount lock has been designed with fixings which are compatible with other locking devices of a similar nature, so retrofit/replacement is easier.
Key features:
Non handed motorised bolt.
Surface mount.
With or without manual override.
IP53.
Audible signal for lock error.
Includes cylinder and keys.
Nylon gears.
Internal and external use.
2 year warranty.
Technical specifications:
Dimensions:
126 x 96 x 42mm (lock).
96 x 40 x 36mm (keeper).
Environmental: -25°C to +70°C
Operating voltage: 12Vdc
Max current:
120mA running.
410mA in-rush.
IP rating: IP53.
Outputs: Audible on lock error.
