Description

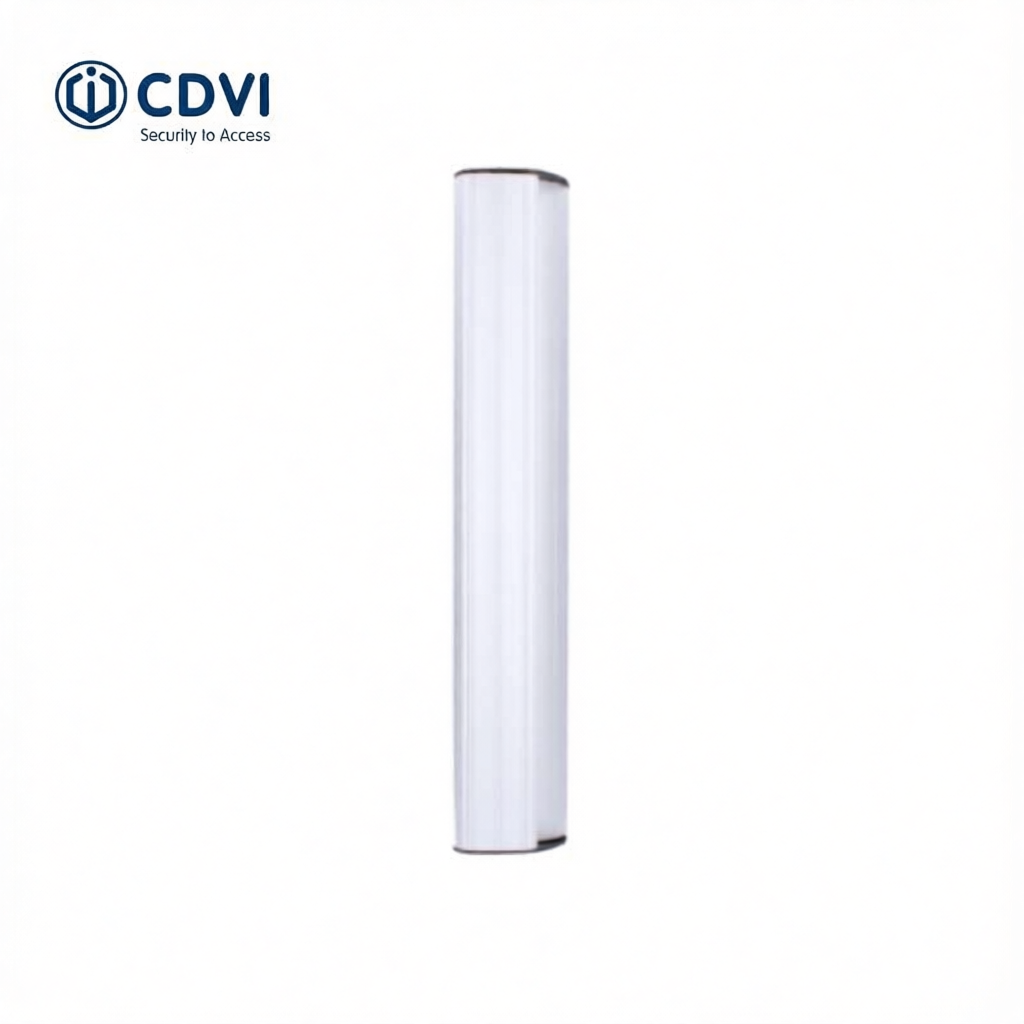

P600RP
Architectural handle, 2x300kg monitored magnets, 600mm
Pull handles are becoming increasingly popular with sites that require strong holding forces or more aesthetic solutions. The entire range from CDVI is ideal for locations where a stronger lock is essential; such as schools, halls of residence and other public buildings.
The P600RP is a 600mm handle incorporating 2x300kg monitored magnets. It can be fitted to new or existing doors and can be used externally. The handle can be fitted using either the REO spacer, the ALMA cable tray or the REOMA spacer and cable tray kit for a better finish.
Key features:
Surface mount
Retrofit or new build
Easy and quick installation
Aesthetic profile
Suitable for wood, metal & glass doors
TECHNICAL SPECIFICATIONS:
Holding Force (kg)
2 x 300kg
Mounting
Surface
ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
480mA
DIMENSIONS:
Product Height (mm)
600
Product Width (mm)
105
Product Depth (mm)
63
Product Weight (kg)
4.55
