PROMI-ECO

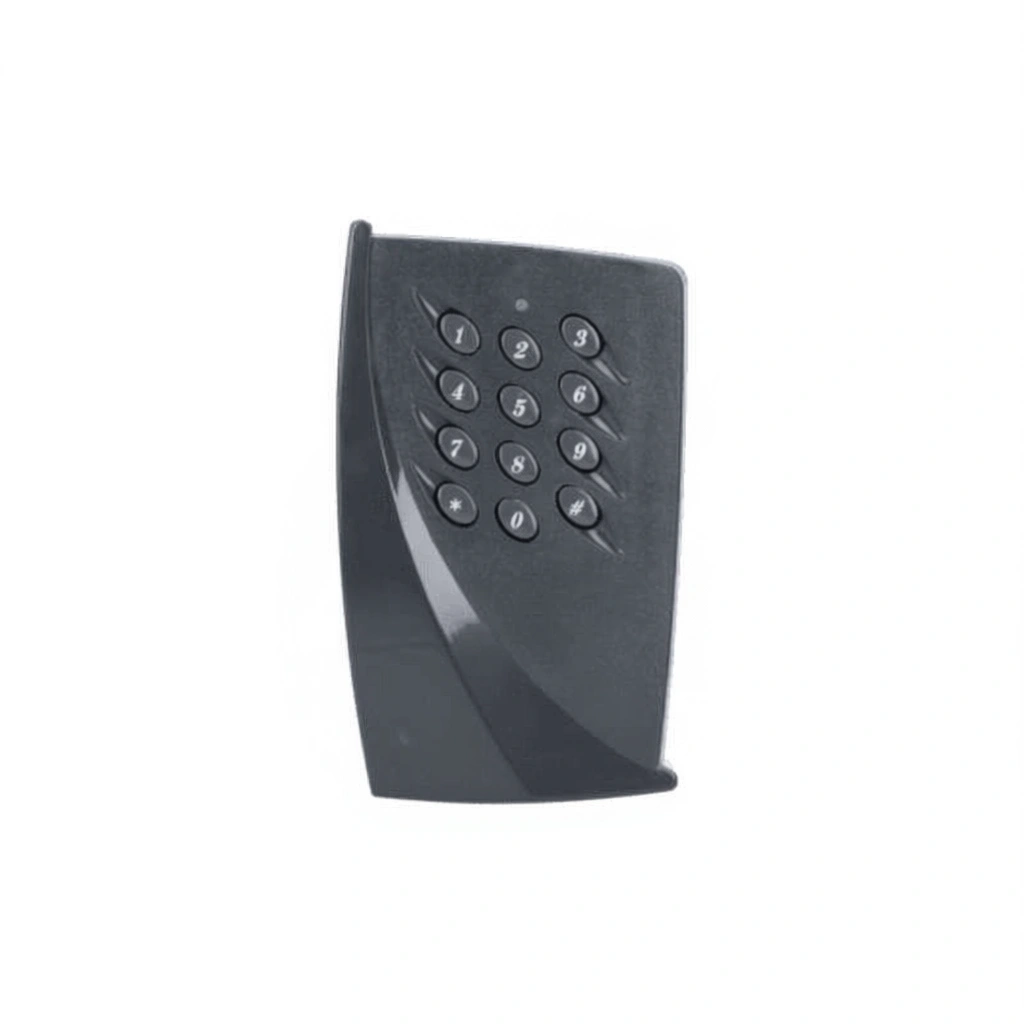

PROMI-ECO Surface mount polycarbonate keypad with self-contained electronics

The PROMI-ECO is a surface mount keypad with self-contained electronics. Constructed in sturdy polycarbonate, this keypad offers a cost-effective, reliable entry solution for industry, retail, and residential settings.

Key features:
Cost-effective, reliable keypad for simple access control projects
Constructed in sturdy polycarbonate
Up to 100 user codes
Compact design with low-rise surface mount
PIN-protected programming mode

TECHNICAL SPECIFICATIONS:
User Limit
Up to 100 user codes
Number of Relays
2 relays: pulse or timed modes
Mounting
Surface
Min Temperature (°C)
-25°C
Max Temperature (°C)
70°C

ELECTRICAL SPECIFICATIONS:
Max Voltage (V)
12Vac/dc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
80mA

DIMENSIONS:
Product Height (mm)
145
Product Width (mm)
80
Product Depth (mm)
28
Product Weight (kg)
0.2
