Push Bar PH355 Three Point Panic Bolt

Description

Push Bar PH355 Three Point Panic Bolt

Push Bar PH355 Three Point Panic Bolt

For use on a single door, the inactive leaf of a pair of rebated doors, or both leaves of a pair of straight-edged double doors. The centre mechanism can be blanked off with the plate supplied to convert it into a two-point device when using it on double doors.

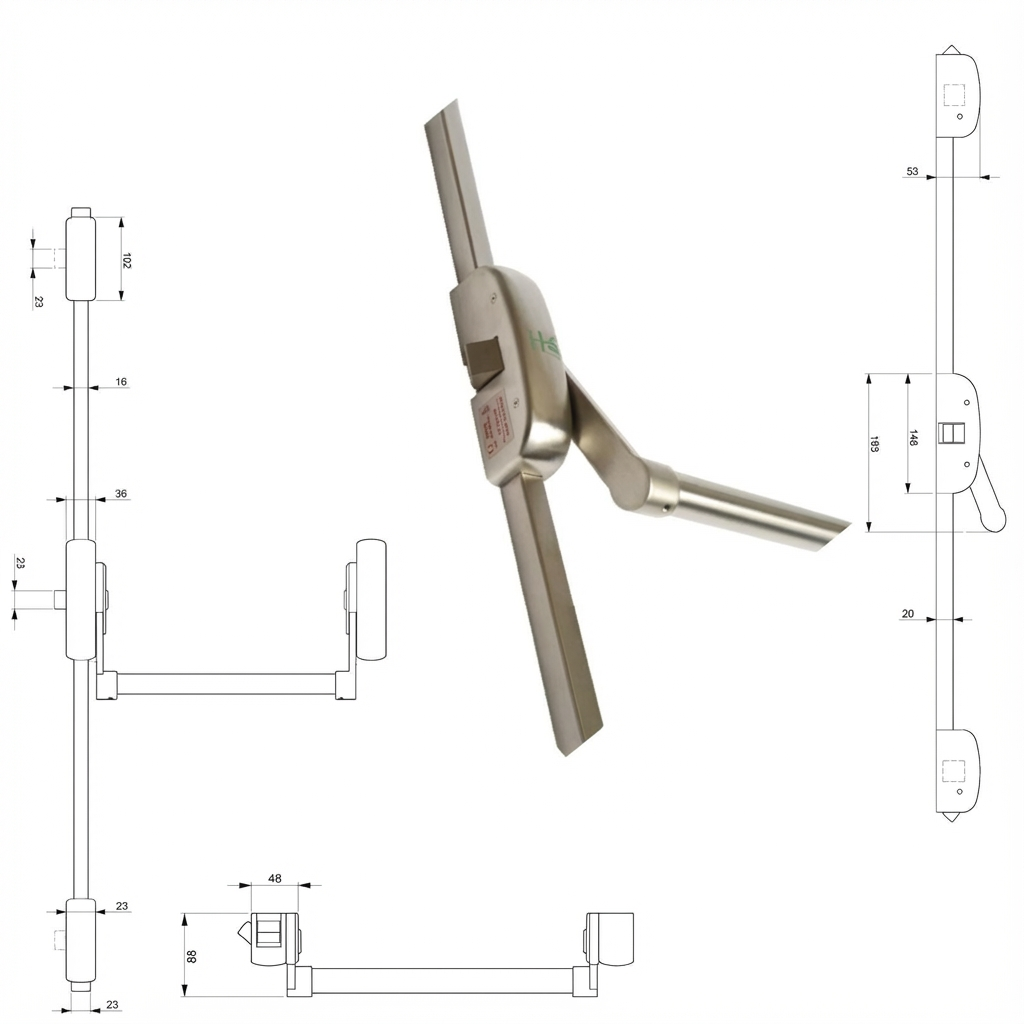

Comprises a mechanism, idler, and crossarm with covered connecting rods and vertical latching pullman latches at the top and bottom.

Suits doors up to 1050mm wide. Longer crossarms are available for wider doors up to 1450mm wide and 2585mm high. Longer rods are available to suit doors up to 3150mm high. Supplied with strikers for timber or metal doors as standard – strikers for PVCu available separately.

Available with a dogging (hold-back) facility; however, this should not be used on fire/smoke door assemblies but is suitable for escape doors.

A micro-switch can be fitted in either the mechanism or idler. This allows the door to be connected to equipment that monitors door status. If required, state preferred location when ordering.

Optional outside access devices are available to provide entry from outside.
