Push Pad PH356 Three Point Bolt

For use on a single door (timber, metal or PVCu), the inactive leaf of a pair of rebated doors or both leaves of a pair of straight edged doors.

The centre mechanism can be blanked off with the plate supplied to convert it to a two point device for double doors.

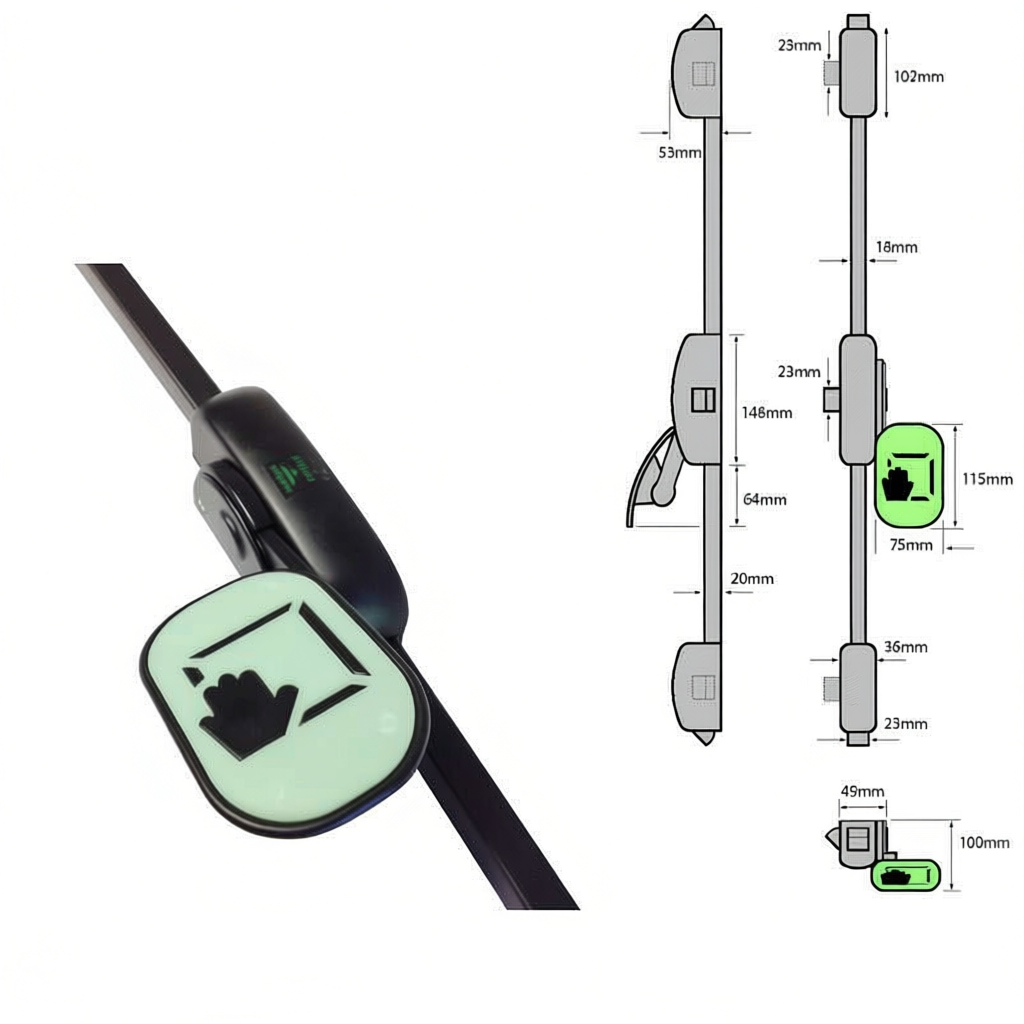

Comprises a mechanism, covered connecting rods, vertical latching pullman latches at the top and bottom and a push pad with photoluminescent insert.

Standard devices suit doors up to 2585mm high. Longer rods are available for doors up to 3150mm high.

Supplied with strikers for timber or metal doors as standard – strikers for PVCu available separately.

Available with a dogging (hold-back) facility; however, this should not be used on fire/smoke door assemblies but is suitable for escape doors.

Micro-switch can be fitted in the mechanism. This allows the door to be fitted to equipment that monitors the door status. If required, state when ordering.

Optional outside access devices are available to provide entry from outside.
