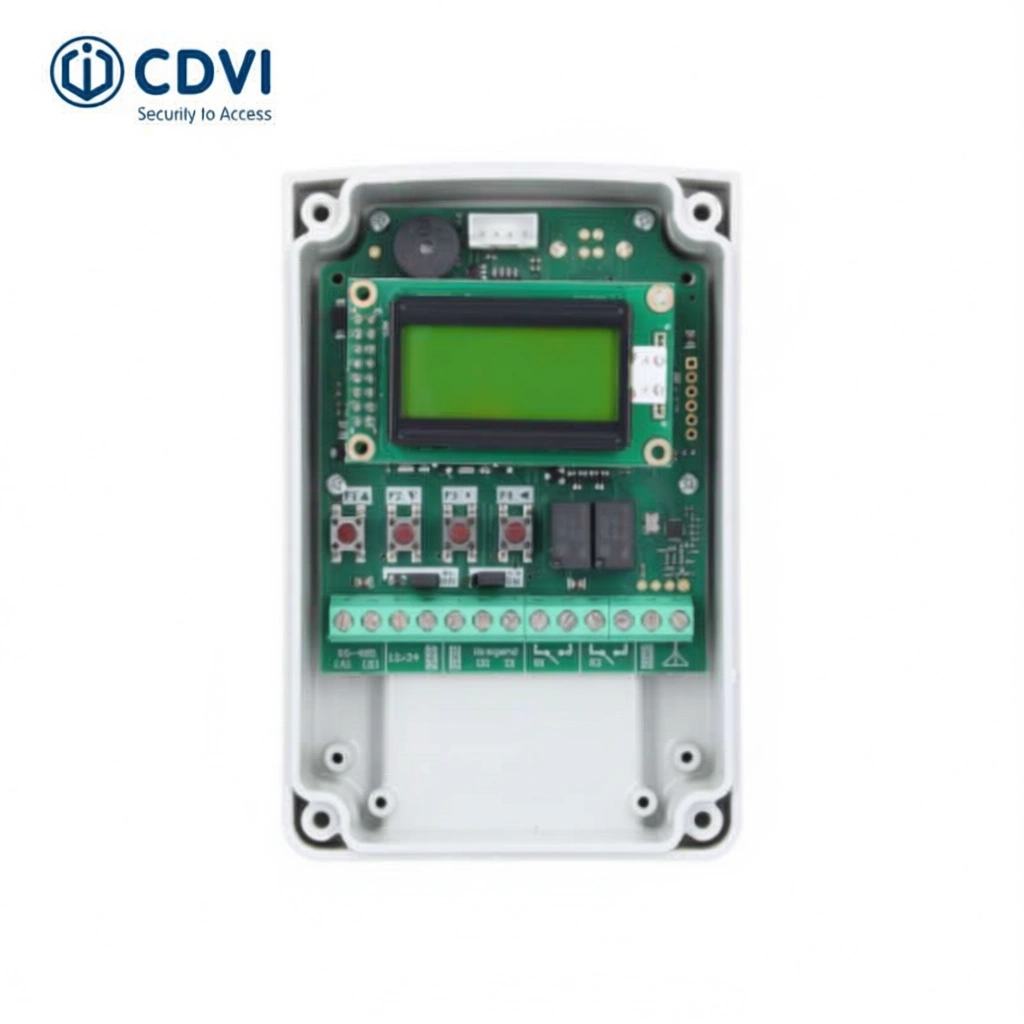

RX128-XPL

RX128-XPL High security receiver, 2 relays

This high security receiver is equipped with AES128 encryption and KeeLoq® rolling code, meaning you can be confident in the privacy and security of your data. With two relays and memory for up to 500 paired transmitter buttons, this receiver is ideal for installations requiring both wireless activation, high security, and a Wiegand connection.

Key features:

High security receiver with AES encryption
2 relays with timed or pulse operation
Data transmission protected with KeeLoq® rolling code
Wiegand 26, 30 or 44 bit output
Memory for up to 500 transmitter buttons
Compatible with 128-bit transmitters only

Technical information:

Security Level
High – AES128 encryption
Number of Relays
2
Min Temperature (°C)
-10°C
Max Temperature (°C)
60°C
Frequency
433.92MHz
Modulation
GFSK
Encoding
AES128 & KeeLoq® rolling code
Memory
500 transmitter buttons

ELECTRICAL SPECIFICATIONS:

Min. Voltage (V)
12Vac/dc
Max Voltage (V)
24Vac/dc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
50mA

DIMENSIONS:
Product Height (mm)
123
Product Width (mm)
82
Product Depth (mm)
41.5
