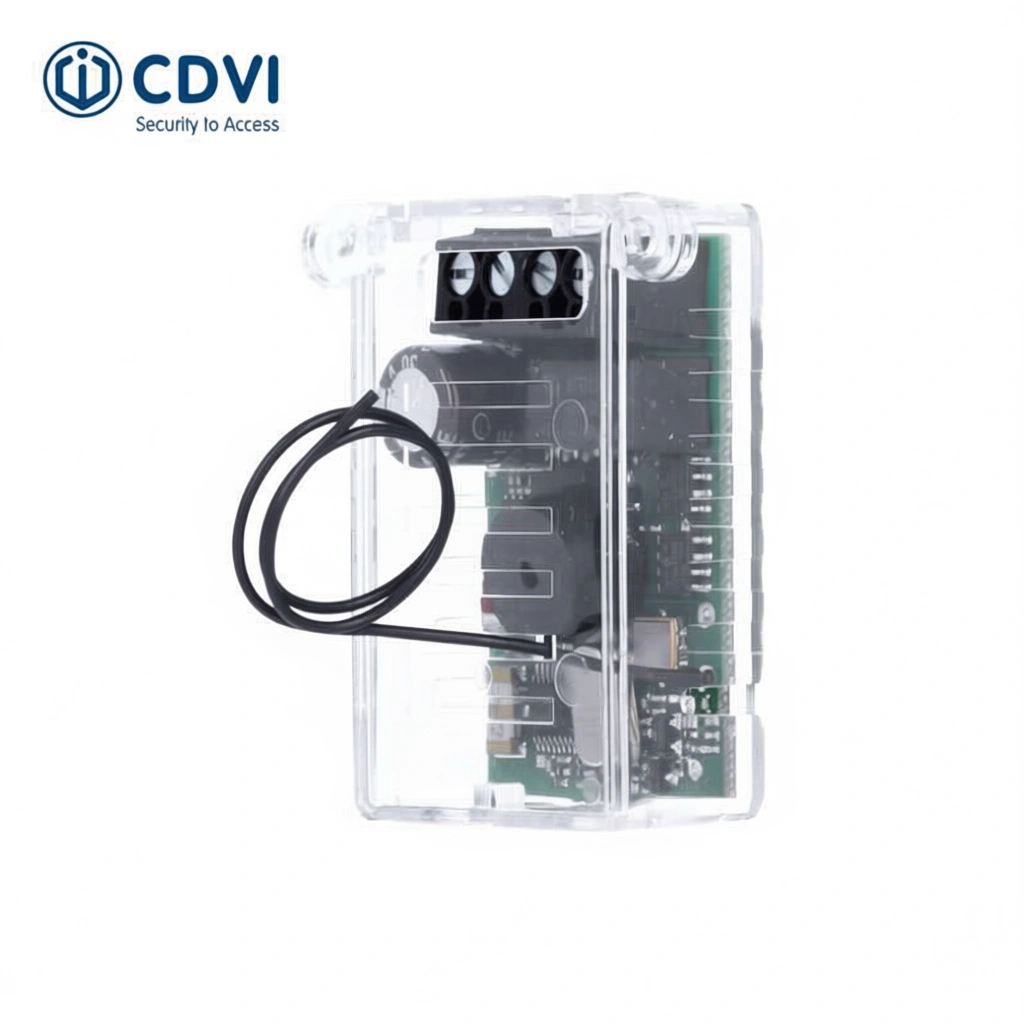

RX26-NANO receiver, 1 relay

Description

RX26-NANO

RX26-NANO receiver, 1 relay

The RX26-NANO is a small, economical, single channel receiver for automation and security projects. It is ideal for wire-free control of gates, barriers, doors, and lights. With a miniature housing and memory capacity for up to 85 transmitter channels, the RX26-NANO is a convenient and flexible option for many projects.

Key Features:

Miniature single-relay receiver
Ideal for wireless control of automatic doors, gates, lights
Reception range 200m
Timed and pulse relay operation modes
Memory for up to 85 transmitter channels

Technical information:

TECHNICAL SPECIFICATIONS
Number of Relays
1
Min Temperature (°C)
-20°C
Max Temperature (°C)
70°C
Frequency
43392MHz
Modulation
AM/ASK
Encoding
KeeLoq® hopping code
Memory
85 transmitter channels

ELECTRICAL SPECIFICATIONS:

Min. Voltage (V)
12Vac/dc
Max Voltage (V)
24Vac/dc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
30mA

DIMENSIONS:

Product Height (mm)
50
Product Width (mm)
32
Product Depth (mm)
20
Product Weight (kg)
0.03
