RX26-XPL

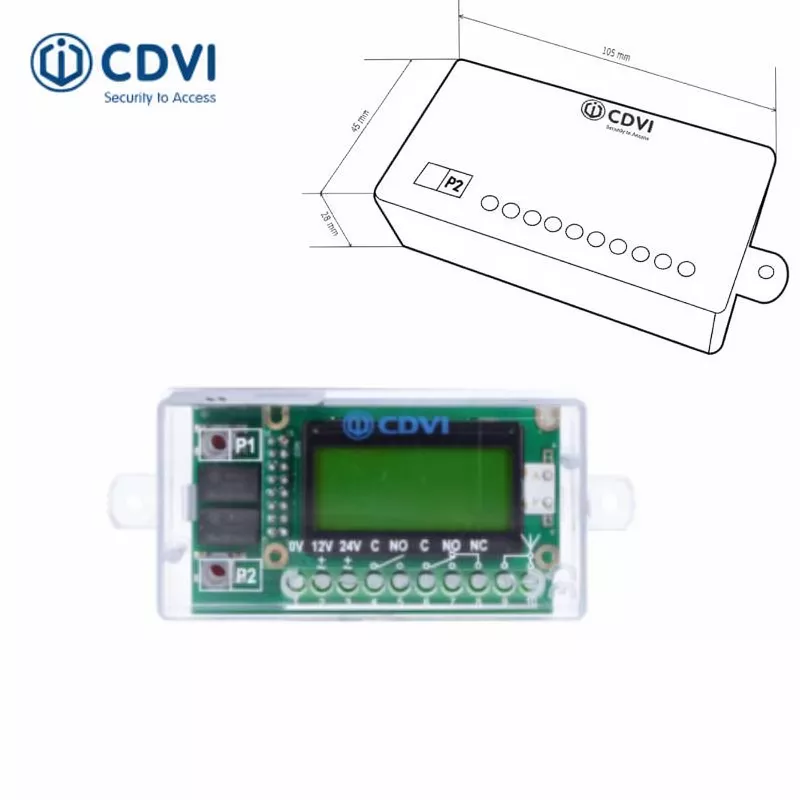

RX26-XPL 2 Relay LCD Display Receiver

This receiver is handy, versatile, and user-friendly thanks to its built-in backlit LCD screen. Configuration is quick and easy using two push buttons included on the receiver, with navigation menus displayed on the screen. The RX26-XPL benefits from two relays as well as memory capacity for up to 100 transmitter channels. To ensure longevity of the system, the internal data can be backed up onto an external memory device (MEM-XPL) in the case of restoring sites or copying to new receivers.

To work with 1 to 4 Channel Transmitters and more.

Key features:

2-relay standard receiver
Memory for up to 100 transmitter buttons
Transparent polycarbonate housing
Ideal for automatic doors, gates, and lights
Backlit LCD screen for simple programming

Technical information:

Number of Relays
2
Min Temperature (°C)
-20°C
Max Temperature (°C)
70°C
Frequency
433.92MHz
Modulation
AM/ASK
Encoding
KeeLoq® hopping code
Memory
100 transmitter channels

ELECTRICAL SPECIFICATIONS:

Min. Voltage (V)
12Vac/dc
Max Voltage (V)
24Vac/dc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
90mA @ 12Vdc

DIMENSIONS:

Product Height (mm)
105
Product Width (mm)
45
Product Depth (mm)
28
Product Weight (kg)
0.08
