RX26-XPL1P 1 Relay Receiver 12/24Vac/dc

Description

RX26-XPL1P

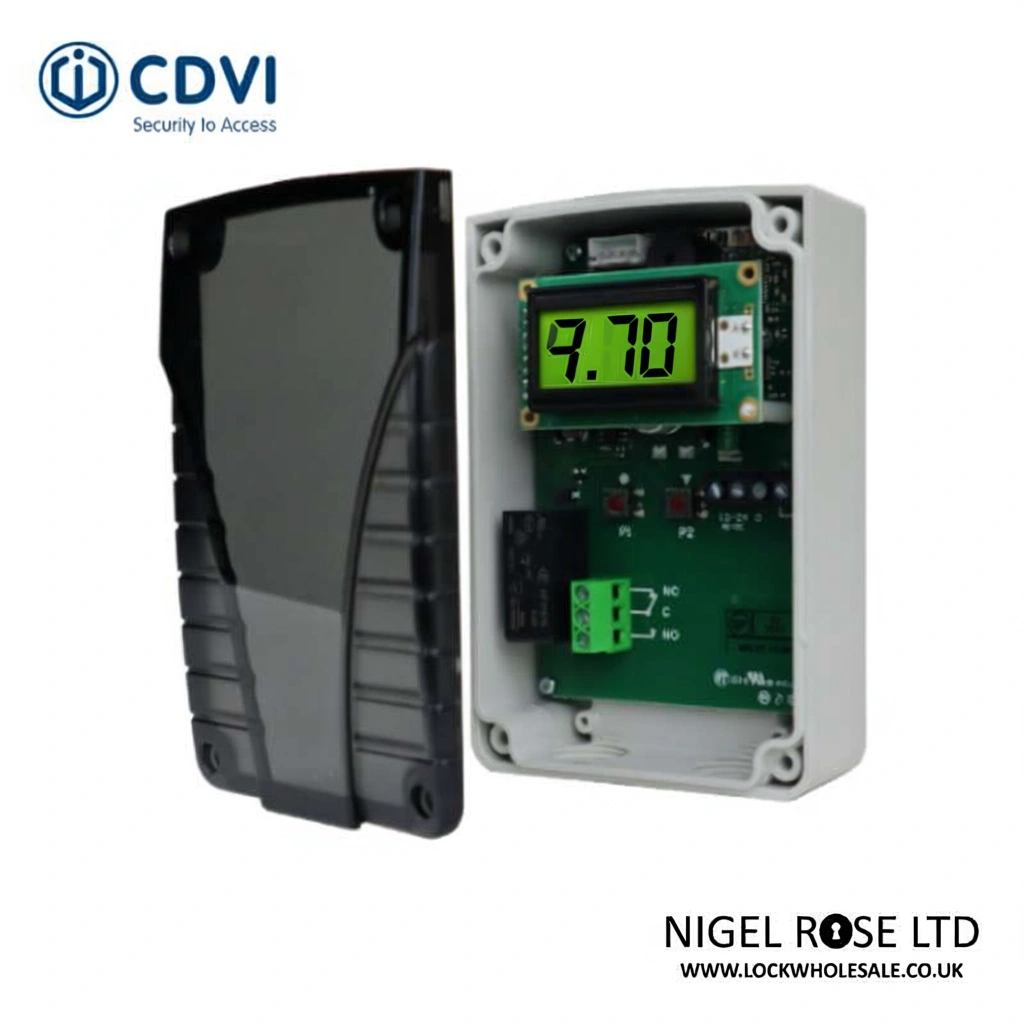

RX26-XPL1P 1 Relay Receiver 12/24Vac/dc

This receiver combines simple operation and easy programming with the versatility of an IP55 rated enclosure and memory capacity for up to 500 transmitter channels. This model has a single relay that can be configured for pulse, timed, or latch modes. To ensure the security of the data being transmitted, it is encoded by KeeLoq® rolling code.

Key features:

1-relay radio frequency receiver
Memory for up to 500 transmitter channels
Transmissions protected by KeeLoq® hopping code
IP55 rated polycarbonate enclosure
Can have reception range enhanced by SEA433 tuned aerial
Also available in 230Vac version

TECHNICAL SPECIFICATIONS:

Number of Relays
1
Min Temperature (°C)
-20°C
Max Temperature (°C)
70°C
Frequency
433.92MHz
Modulation
AM/ASK
Encoding
KeeLoq® hopping code
Memory
500 transmitter channels

ELECTRICAL SPECIFICATIONS:

Min. Voltage (V)
12Vac/dc
Max Voltage (V)
24Vdc
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
90mA @ 12Vdc / 190mA @ 24Vac

DIMENSIONS:
Product Height (mm)
123
Product Width (mm)
82
Product Depth (mm)
41.5
