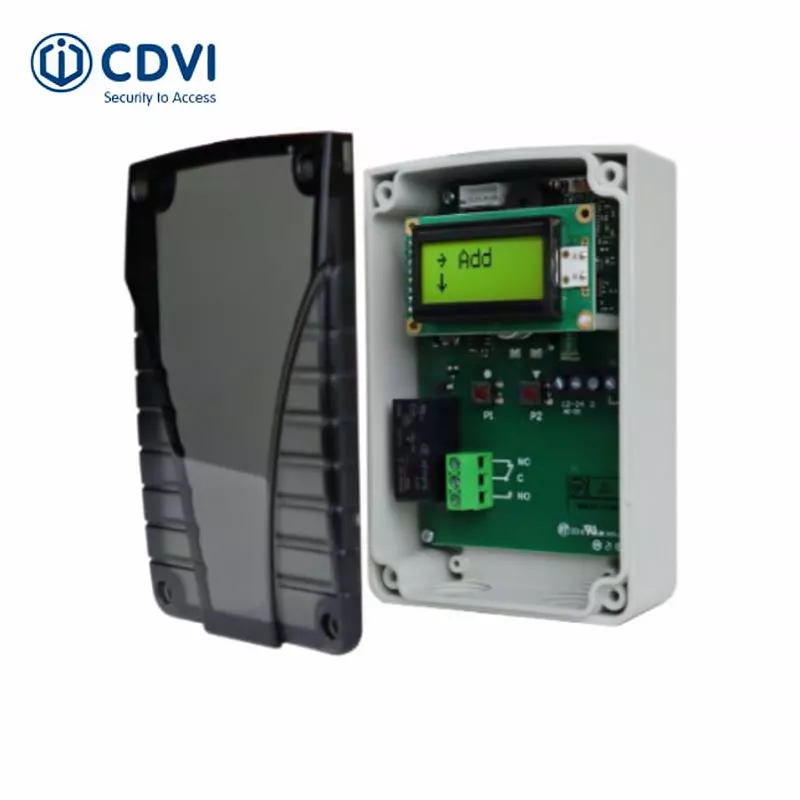

RX26-XPL1V

RX26-XPL1V 1 relay receiver 230Vac 500 transmitter memory

This receiver combines simple operation and easy programming with the versatility of an IP55 rated enclosure and memory capacity for up to 500 transmitter channels. This model has a single relay that can be configured for pulse, timed, or latch modes. To ensure the security of the data being transmitted, it is encoded by KeeLoq® rolling code.

Key features:

1-relay radio frequency receiver
Memory for up to 500 transmitter channels
Transmissions protected by KeeLoq® hopping code
IP55 rated polycarbonate enclosure
Can have reception range enhanced by SEA433 tuned aerial
Also available in 12/24Vac/dc version

Technical information:

Number of Relays
1
Min Temperature (°C)
-20°C
Max Temperature (°C)
70°C
Frequency
433.92MHz
Modulation
AM/ASK
Encoding
KeeLoq® hopping code
Memory
500 transmitter channels

ELECTRICAL SPECIFICATIONS:

Min. Voltage (V)
230Vac
Max Voltage (V)
230Vac
Voltage AC/DC
AC
Max Power Consumption (mA)
10mA @ 230Vac

DIMENSIONS:

Product Height (mm)
123
Product Width (mm)
82
Product Depth (mm)
41.5
