SELW-2630MF External Wiegand receiver

Description

SELW-2630MF

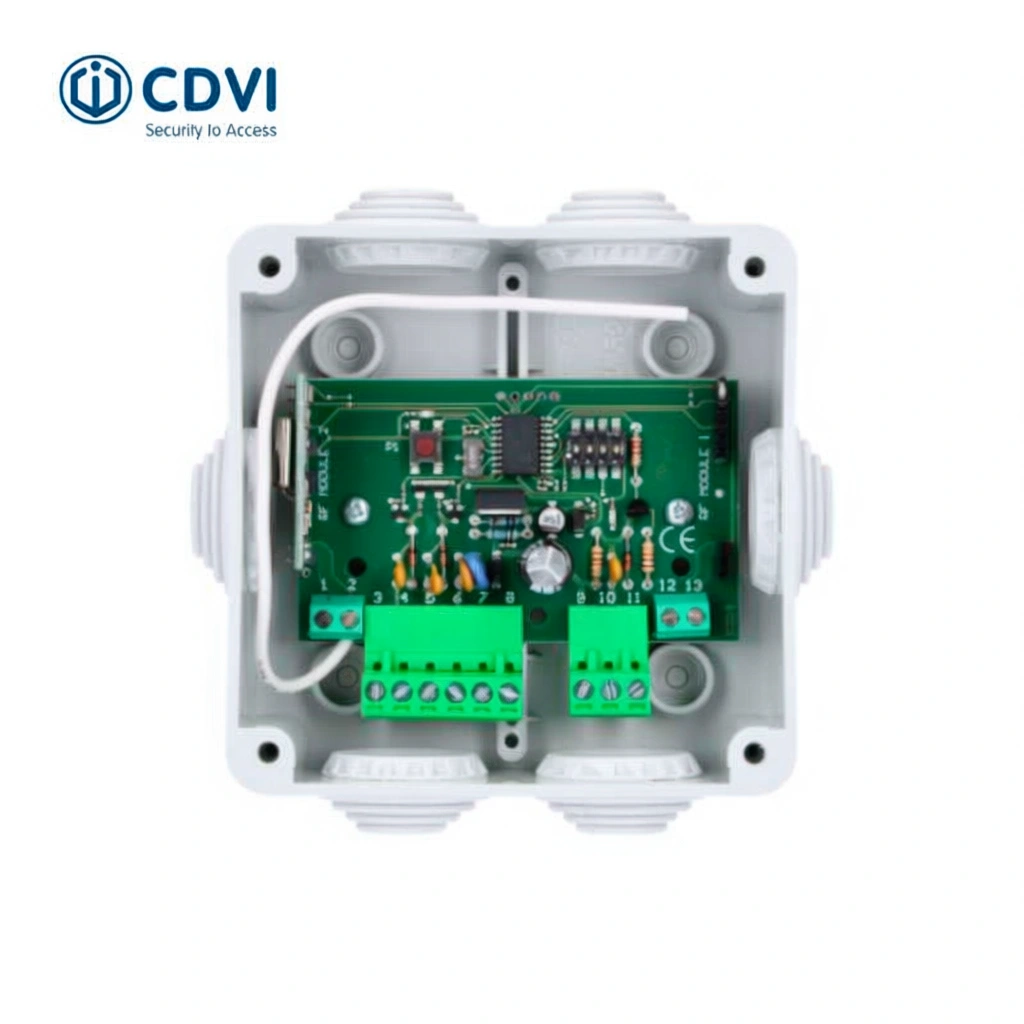

SELW-2630MF External Wiegand receiver

This receiver offers a single Wiegand output, in either 26-bit or 30-bit format. With an IP55-rated enclosure, this receiver is ideal for outdoor installations of automatic gates and barriers. The SELW-2630MF is compatible with all CDVI TX26 Series transmitters.

Features:

Receiver with Wiegand output (26-bit or 30-bit)
Ideal for automatic gates and barriers
Up to 100m range in open field
Compatible with all TX26 Series transmitters
Combine with the SEA433 tuned aerial to enhance the sensitivity of the receiver

Technical information:

Min Temperature (°C)
-20°C
Max Temperature (°C)
70°C
Frequency
433.92MHz
Modulation
AM/ASK
Encoding
KeeLoq® rolling code
Range in Open Field (m)
Up to 100m in open field

ELECTRICAL SPECIFICATIONS:

Min. Voltage (V)
12Vac/dc
Max Voltage (V)
24Vac/dc
Voltage AC/DC
AC/DC

DIMENSIONS:

Product Height (mm)
109
Product Width (mm)
109
Product Depth (mm)
56
Product Weight (kg)
0.02
