SHL1200

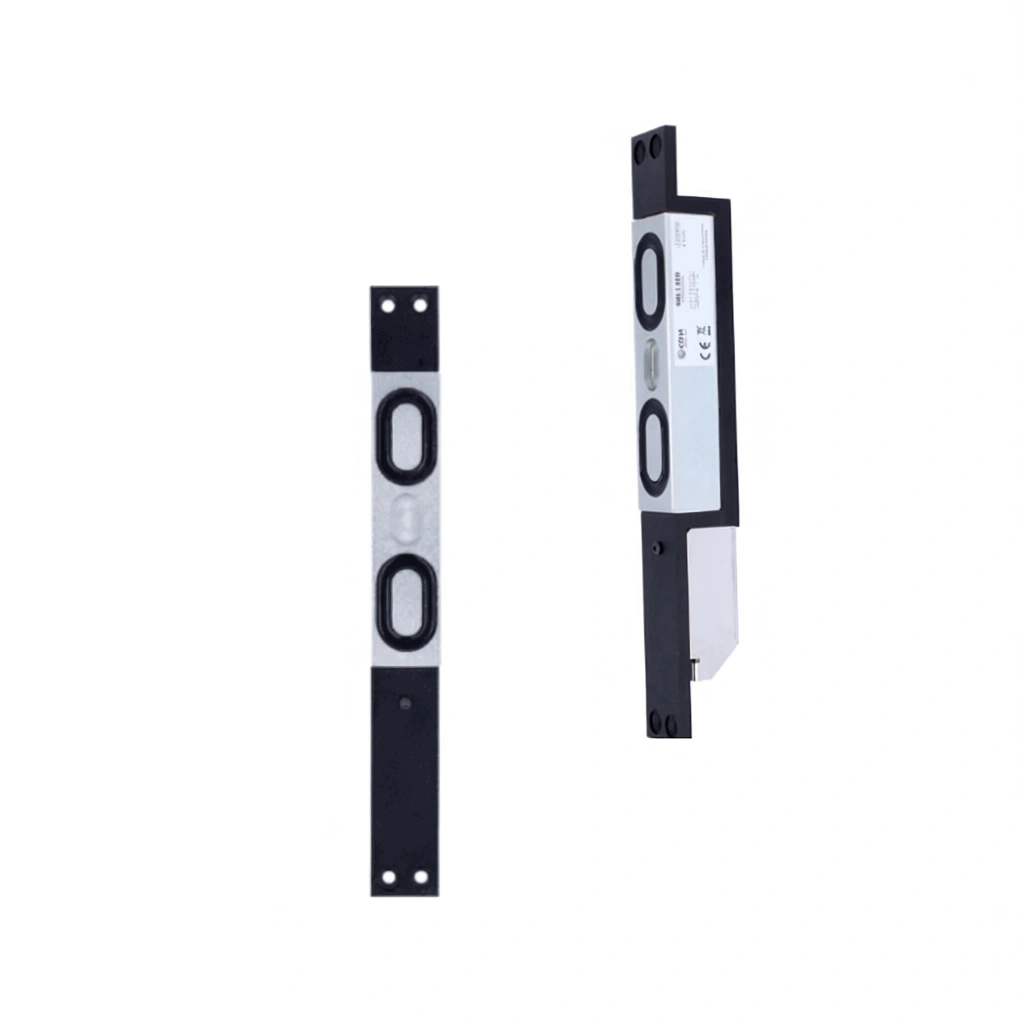

SHL1200 Traditional 1200kg shearlock

The SHL1200 is a traditional shearlock. It is ideal for single action doors which always rest in the same position and include high quality door closers. The construction of the SHL1200 makes it suitable for both aluminium and wooden doors . Being very robust in construction and performance, this shearlock provides a holding force of up to 1200kg. Additionally, a varistor is built into the electronics, eliminating back-EMF and protecting sensitive controlling devices such as keypads and access control units.

Key features:
1200kg holding force with both magnetic and mechanical locking
Fail safe lock – for doors which need to automatically unlock in case of power loss
Live status monitoring for greater site visibility
Mortice mount (surface housing available – see SHL1200-H)
Built-in MOV for protection against electronic surges

TECHNICAL SPECIFICATIONS:
Number of Relays
1
Fail Safe / Fail Secure
Fail safe
Mounting
Mortice
Min Temperature (°C)
-20°C
Max Temperature (°C)
60°C

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
1800mA

Shearlock DIMENSIONS:
Product Height (mm)
267
Product Width (mm)
30
Product Depth (mm)
32
Armature Plate Dimensions (LxWxH)
267 / 30 / 35mm
Product Weight (kg)
1.35

Surface housing DIMENSIONS:
Product Height (mm)
274
Product Width (mm)
30
Product Depth (mm)
62
Product Weight (kg)
1.23
