SURELOCK Replacement uPVC Lock Gearbox – 35mm Backset

Description

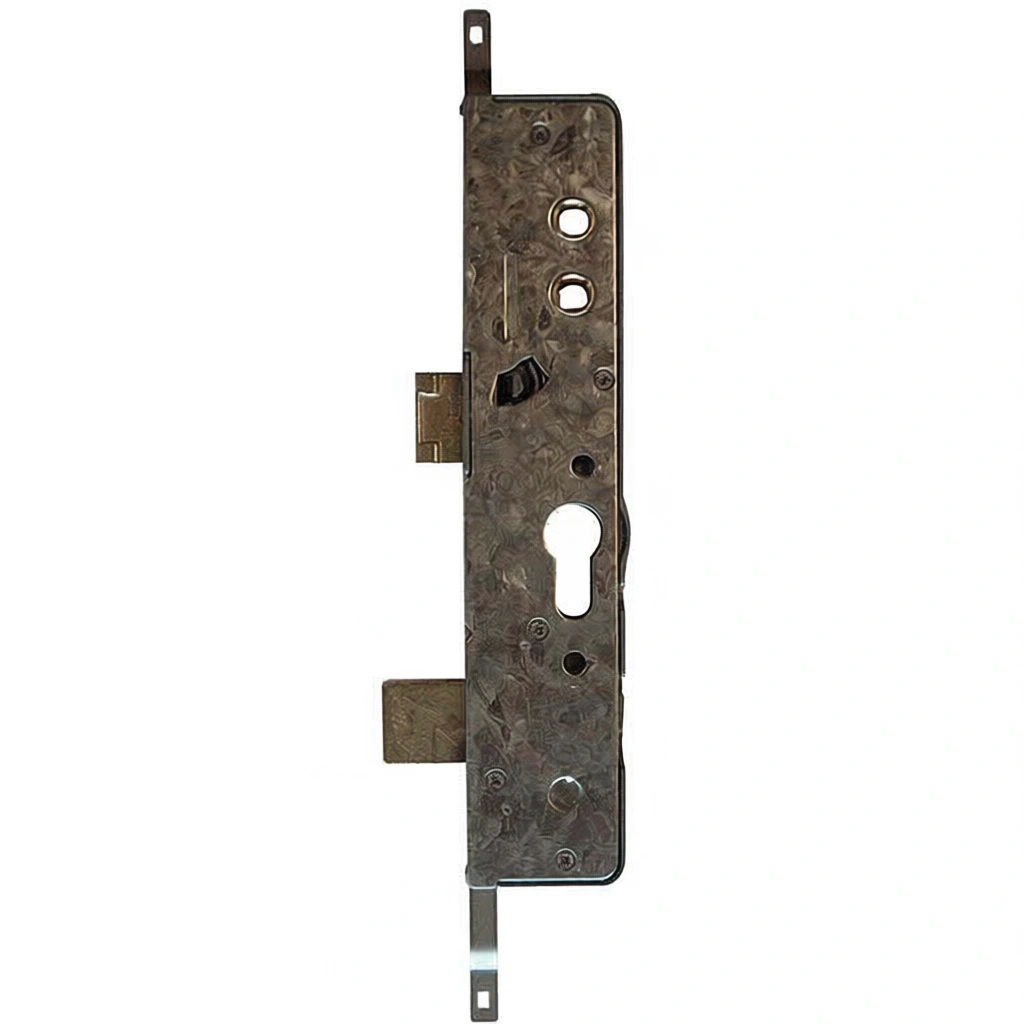

Surelock/Cego Replacement Upvc Lock Gearbox for Multi-Point Lock – 35mm Backset

Overview:

• One latch and one deadbolt.
• For use on uPVC doors.
• Dual spindle.

Overview:

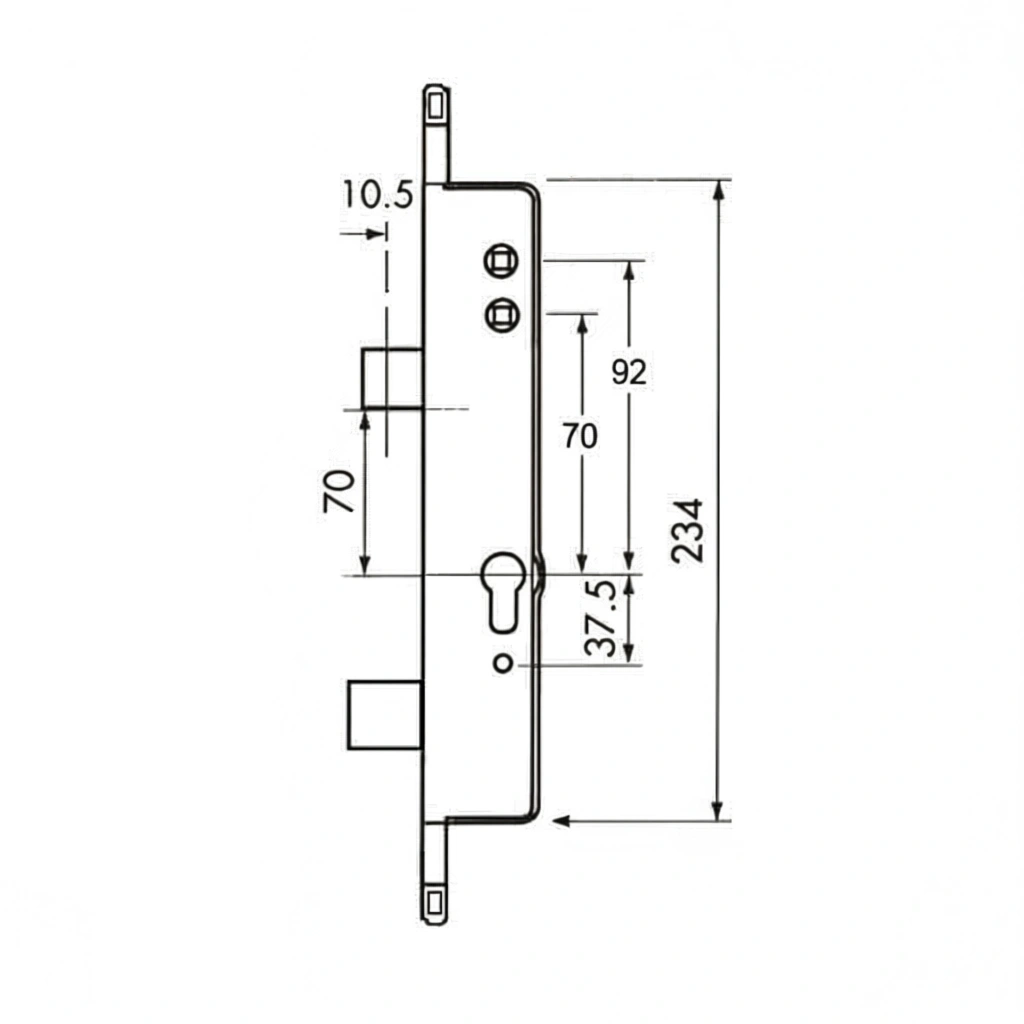

• Backset: 35mm
• Centres: 70 / 92mm
• Case depth: 47mm
• Case height: 234mm
• Spindle: 8mm

Overview:

• This lock can be used as either a lever/lever operation or as a lever pad, as it has a dual spindle function built in.
• Latch reversal: Lay the multipoint lock strip on the floor with the latch and deadbolt facing to the left. Undo the 5 screws on the side of the case, remove the flat positioning plate, remove the latch clip, twist the latch into the desired position, reinsert the flat positioning plate and latch clip, replace the cover, and tighten the screws.
