T290-SR1024

T290-SR1024 Symmetrical fail secure strike with faceplate, 10-24Vac, continuous rated

The S series builds upon the success of our original G series by featuring a stainless steel design for added strength, a symmetrical body for easier installation and reduced dimensions. It is a fail secure strike that opens when voltage is applied. It can be continuously rated with a voltage between 10 and 24V. The adjustable jaw has a 4 mm play. The strike is equipped with a bi-directional diode.

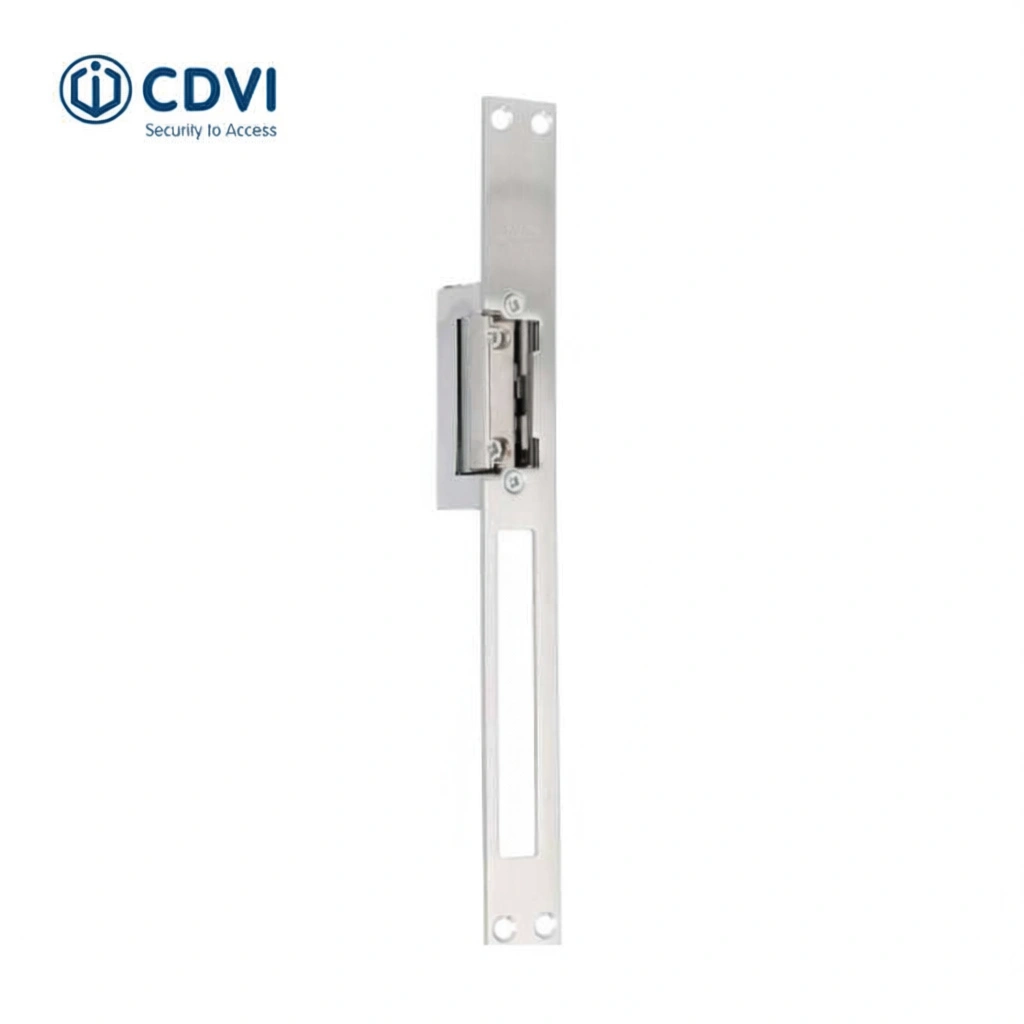

(Note: Since acquiring JIS, we are in a transition period of strike versions. The first photo shows the previously sold strike and the second photo shows the new version. Nothing changes to the strike specifications.)

Key features:

Locks without power applied
Symmetrical – suitable for left and right-handed doors
Permanently unlockable
Built-in bidirectional diode
10-24Vac/dc operational voltage (DC only for CC usage)

TECHNICAL SPECIFICATIONS:

Fail Safe / Fail Secure
Fail secure
Mounting
Mortice
Min Temperature (°C)
-10
Max Temperature (°C)
40
Jaw Type
Adjustable

ELECTRICAL SPECIFICATIONS:

Min. Voltage (V)
10
Max Voltage (V)
24
Voltage AC/DC
AC/DC
Max Power Consumption (mA)
540

DIMENSIONS:

Product Height (mm)
250
Product Width (mm)
25
Product Depth (mm)
32
Product Weight (kg)
0.25
