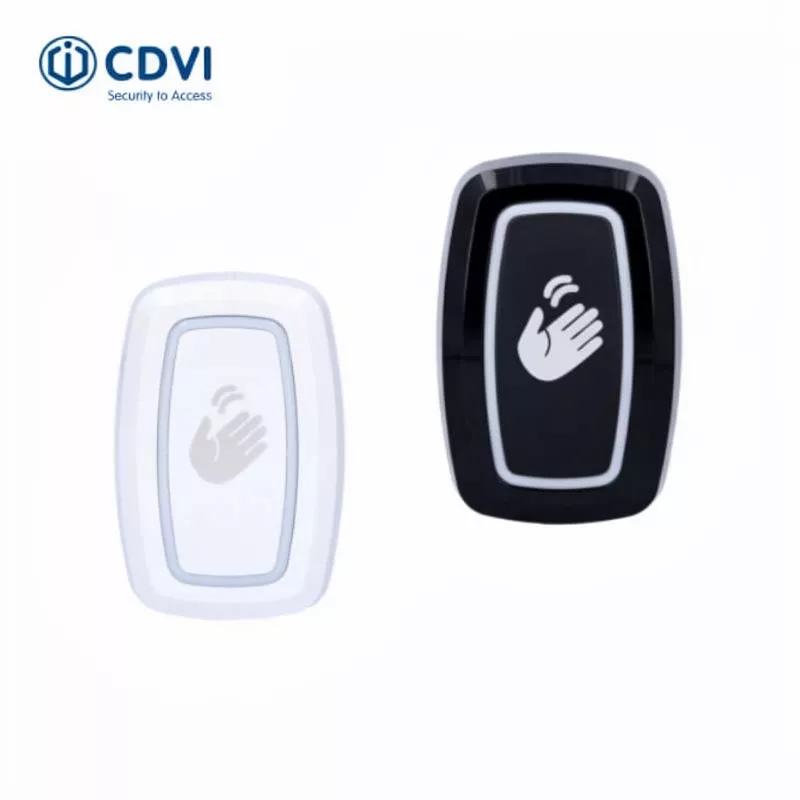

TX26-TTHS 1-channel radio touchless transmitters

Description

TX26-TTHS

1-channel radio touchless transmitters

This touchless radio transmitter with KeeLoq® technology is ideal for operating gates, doors and garage doors. Thanks to its battery power, it does not require any wiring, making installations simple and easy. The TX26-TTHS is triggered if a hand is waved in front of the device, making it a safe and hygienic touchless solution.

Key features:
Radio frequency touchless transmitter
Up to 4cm activation range
Audible and visual feedback
Up to 300m transmission range in open field
Ideal for triggering automatic doors, gates, lights

TECHNICAL SPECIFICATIONS:
Mounting
Surface
Min Temperature (°C)
-20°C
Max Temperature (°C)
80°C
Channels
1
Frequency
433.92MHz
Modulation
AM/ASK
Encoding
KeeLoq® rolling code
Range in Open Field (m)
200-300m in open field

ELECTRICAL SPECIFICATIONS:
Max Power Consumption (mA)
60mA in operation
Battery included
ER14505 Lithium battery

DIMENSIONS:
Product Height (mm)
105
Product Width (mm)
70
Product Depth (mm)
23.5
