Application

For timber doors hinged on left or right and requiring key & lever handle operation
To suit doors up to 54mm thick

Specification

• Deadbolt locked or unlocked by key from either side
• Latch bolt withdrawn by lever handle from either side
• Extended 20mm deadbolt for secure positive deadlocking and additional resistance against attack
• 2234E may be keyed alike with 2134E
• Pierced to accept bolt through furniture
• NB: Not suitable for master keying
• Reversible latch bolt from outside of case
• Anti-pick and anti-saw security features
• Available with square forend and striking plate

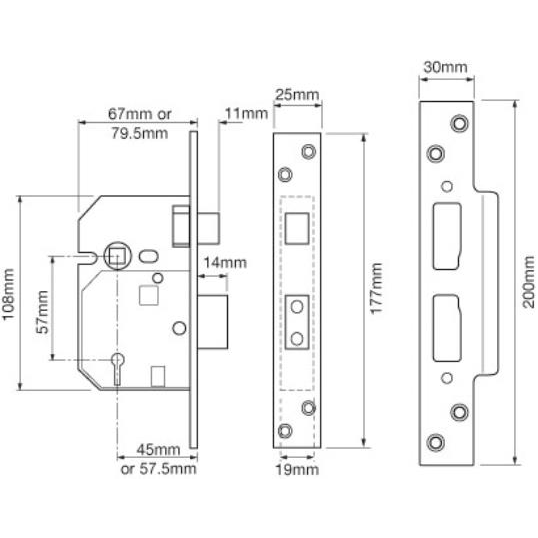

• Case Size: 67mm (2.5") or 79.5mm (3")
• Backset: 45mm or 57.5mm
• Case: Steel, red powder coat
• Forend: Stainless steel or brass
• Striking Plate: Security box type, finished to match forend
• Deadbolt: Brass, with hardened steel rollers
• Latch Bolt: Brass, reversible
• Follower: Brass, 8mm square
• Rebate Kit: 2964 (13mm, 19mm or 25mm)
• Keying Groups: Supplied to pass, differ and keyed alike. Supplied with 3 steel nickel plated keys
• Key Blank Number: KB430

Standards

• Tested to BS 3621 : 2007
• 2 H 4 1 0 F 7 K D 2 B
• EN 1634-1 assessed for use on 60 minutes timber fire doors
• EC Certificate number: 0832-CPD-6043
