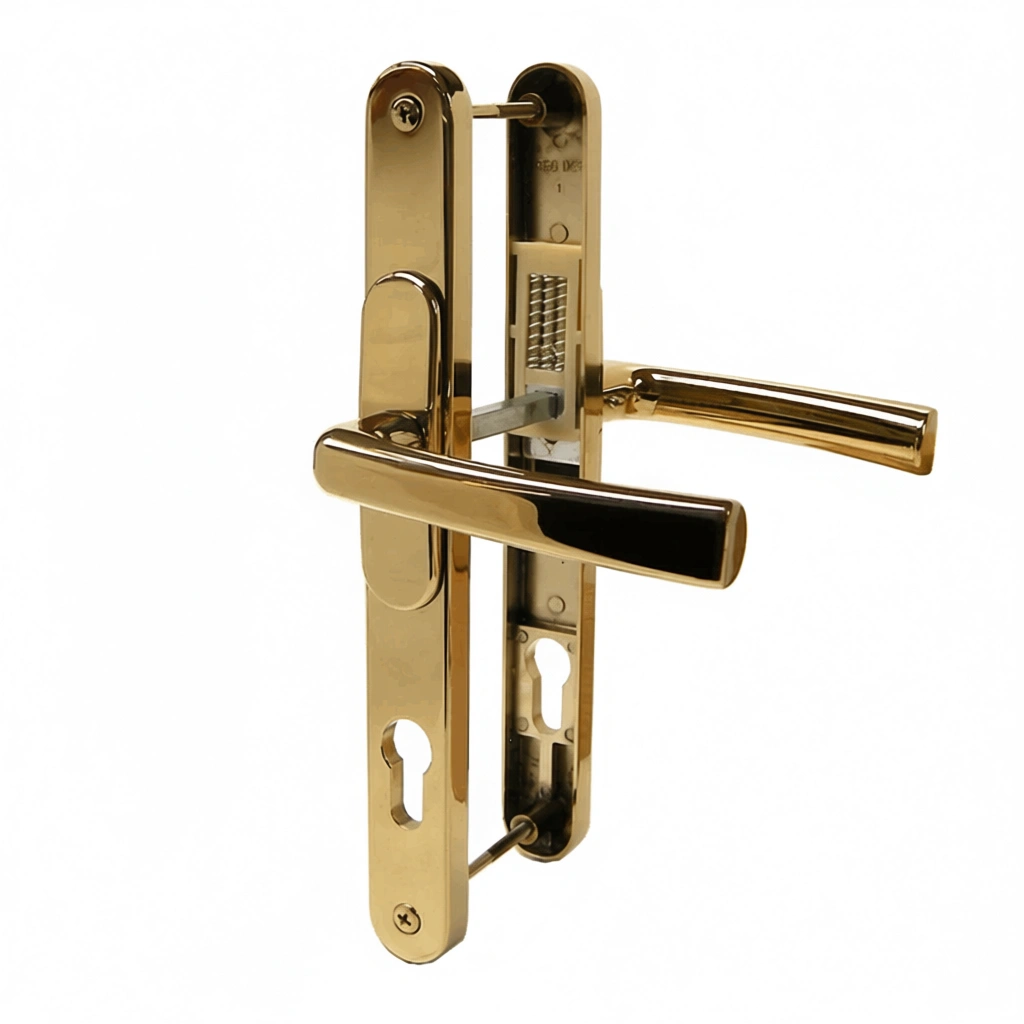

Universal Adjustable Lever Lever Door Handle – 62-95mm PZ Sprung 260mm Screw Centres

You can adjust the levers to vary the PZ centres between 62mm and 95mm and use them with a single spindle, split spindle and offset spindle lift to lock multipoint locks.
With a large backplate of 290mm x 30mm, you can use these handles to cover any marks and holes from the previous handles.
The distance between the fixing screws is 260mm with the bottom screw positioned 48mm below the euro profile cut-out. They are supplied as a pair complete with fixings consisting of spindle & 2 colour coordinated screws.

• Sprung.
• Length: 290mm.
• Width: 30mm.
• Centres (PZ): Adjustable between 62–95mm.
• Screw Centres: 260mm.
• Base of euro to bottom screw: 48mm.
• Top screw to spindle: 109–142mm.
• Supplied with spindles and screws.
• Supplied as a pair.
• Non-handed.
