V3ER

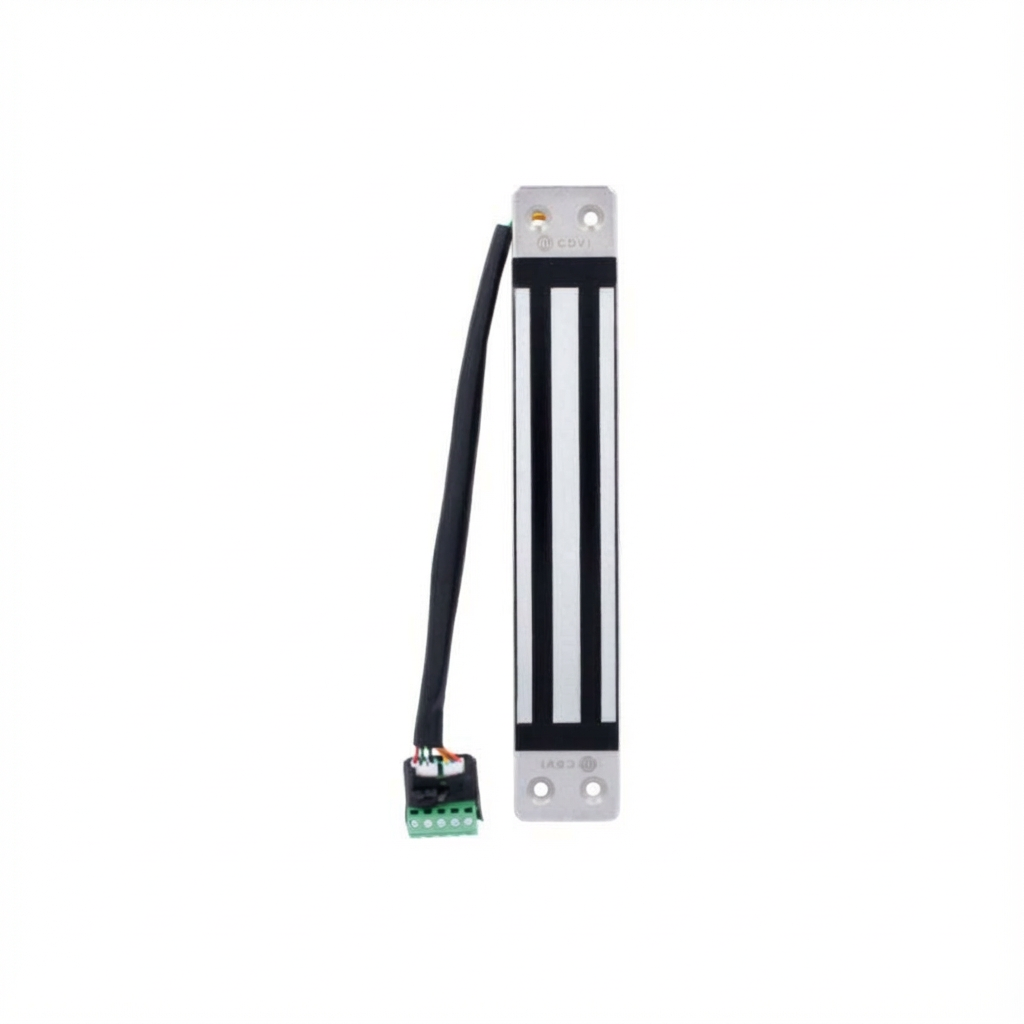

V3ER Mortice 300kg magnetic lock, monitored.

The V3ER is usually installed within a transom to provide electro-magnetic locking for swing doors. With 300kg holding force and lock status monitoring, this magnet is robust and user-friendly. To make installation easier in a wider range of environments, you can choose either 12Vdc or 24Vdc for the V3ER.

Key Features:
Mortice mount electro-magnetic lock
Up to 300kg holding force for robust security
12 or 24Vdc operation
Live status monitoring
No moving parts
Great for swing or sliding doors – usually mounted into the transom

TECHNICAL SPECIFICATIONS:
Number of Relays: 1
Fail safe
Mounting: Mortice
Min Temperature (°C)
-40°C
Max Temperature (°C)
60°C

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
420mA

DIMENSIONS:
Product Height (mm)
228
Product Width (mm)
38
Product Depth (mm)
27
Armature Plate Dimensions (LxWxH)
185 x 38 x 11mm
Armature Plate Weight (kg)
0.59kg
Product Weight (kg)
1.1kg
