V4ER

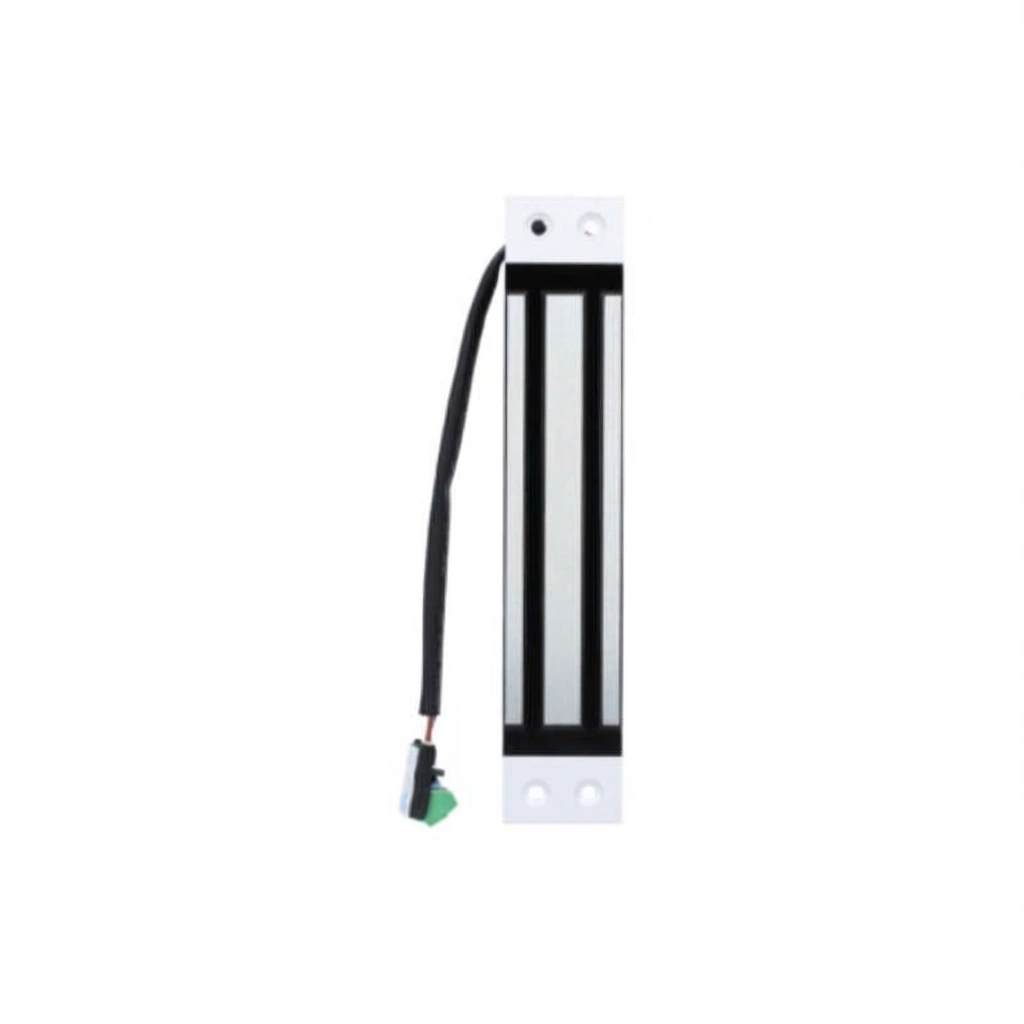

V4ER Mortice 400kg magnetic lock, monitored

The V4ER is usually installed within a transom to provide electro-magnetic locking for swing doors. With 400kg holding force and lock status monitoring, this magnet is robust and user-friendly. To make installation easier in a wider range of environments, you can choose either 12Vdc or 24Vdc for the V4ER.

Key Features:
Mortice mount electro-magnetic lock
Up to 400kg holding force for robust security
12 or 24Vdc operation
Live status monitoring
No moving parts
Great for swing or sliding doors – usually mounted into the transom

TECHNICAL SPECIFICATIONS:
Number of Relays: 1
Fail safe
Mounting: Mortice
Min Temperature (°C)
-40°C
Max Temperature (°C)
60°C

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
500mA

DIMENSIONS:
Product Height (mm)
228
Product Width (mm)
44
Product Depth (mm)
30
Armature Plate Dimensions (LxWxH)
185 / 45 / 11mm
Armature Plate Weight (kg)
0.76kg
Product Weight (kg)
1.29kg
