Description
V4SR

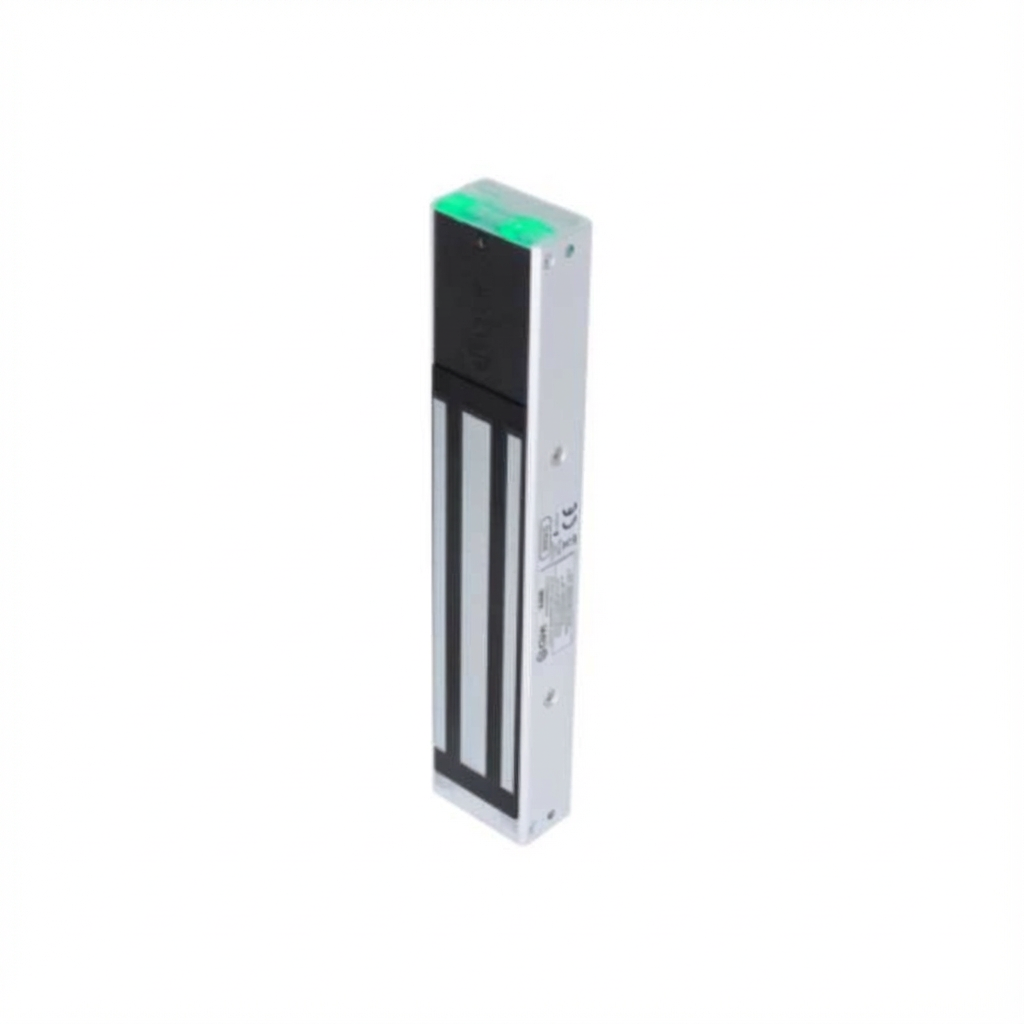

V4SR Surface 400kg magnetic lock, monitored
Providing high quality electro-magnetic locking, the V4SR uses patented technology to keep people and assets secure. With 400kg of holding force, live status monitoring, and LED indication, this lock is ideal for high security installations. Every V4SR is supplied with security catch-ropes, to prevent the magnet from falling out of position and reducing the risk of injury during installation.
Key features:
Surface mount electro-magnetic lock
Up to 400kg holding force for robust security
12 or 24Vdc operation
Live status monitoring
Patented locking technology
Visual LED indication
Z&L bracket available – see 300-ZL
TECHNICAL SPECIFICATIONS:
Number of Relays: 1.
Fail safe
Mounting: Surface
Min Temperature (°C)
-20°C
Max Temperature (°C)
60°C
ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
12Vdc
Max Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
500mA
DIMENSIONS:
Product Height (mm)
254
Product Width (mm)
50
Product Depth (mm)
30
Armature Plate Dimensions (LxWxH)
185 / 45 / 12mm
Armature Plate Weight (kg)
0.76kg
Product Weight (kg)
1.45
