VIR-P5

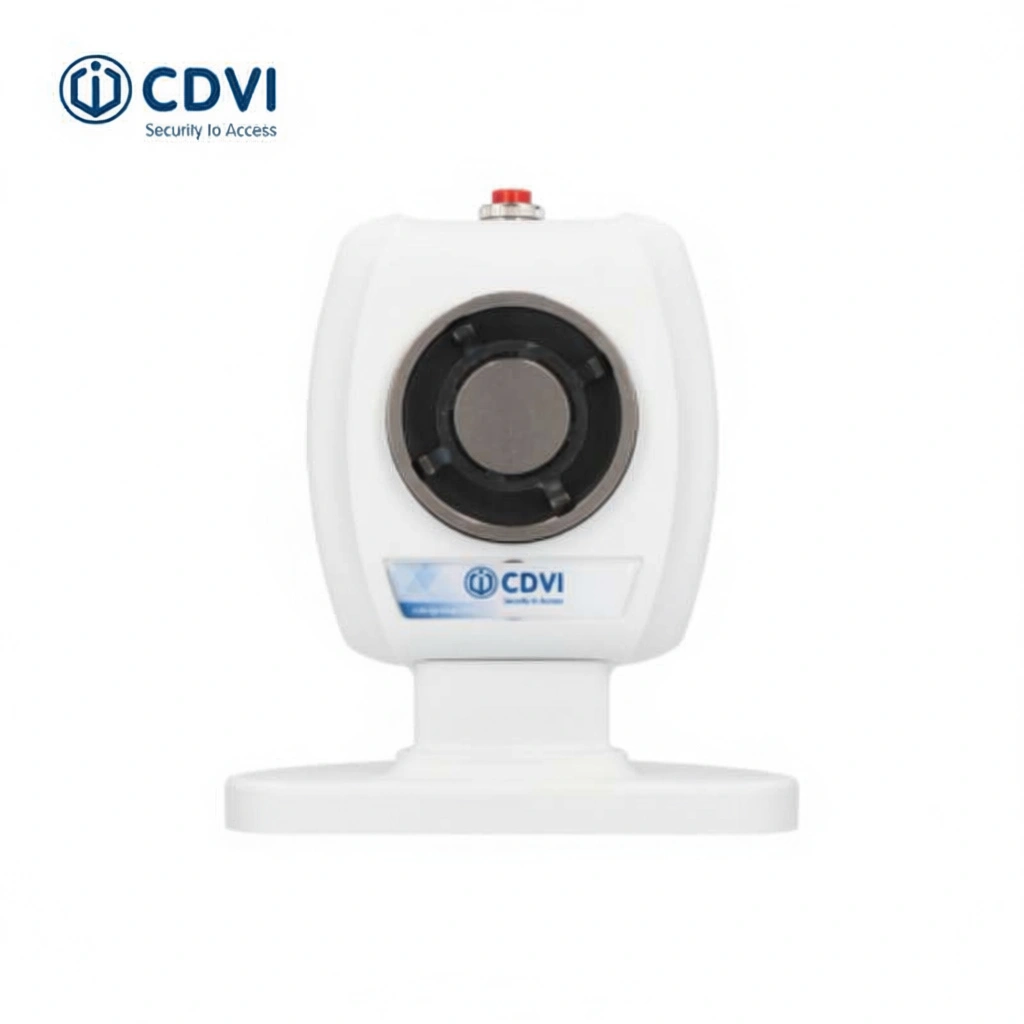

VIR-P5 Floor-mounted magnetic door holder

This magnetic door holder keeps doors in the open position and in the event of a fire alarm, immediately releases the door to close. The VIR-P5 is floor mounted and operates at 24Vdc, to match most fire alarm systems. The 50kg holding force provided by the magnet is sufficient to hold even the heaviest of doors, and is tested under the EN1634-2 fire rating for 60 minutes. Each unit includes a test button to quickly and easily check the emergency operation of the fail safe magnet.

Key features:
Floor mounted magnetic door holder
Automatically releases the door to close in the event of a fire alarm
50kg holding force for even the heaviest doors
Universal armature
CE EN1155 certified
Fire tested to 60 minutes under EN1634-2

TECHNICAL SPECIFICATIONS:
Fail Safe / Fail Secure
Fail safe
Holding Force (kg)
50kg
Mounting
Surface
Cycle testing
Tested for 25,000 cycles in manual and electrical activation each

ELECTRICAL SPECIFICATIONS:
Min. Voltage (V)
24Vdc
Voltage AC/DC
DC
Max Power Consumption (mA)
80mA

DIMENSIONS:
Product Height (mm)
125
Product Width (mm)
112
Product Depth (mm)
66
Product Weight (kg)
0.66
