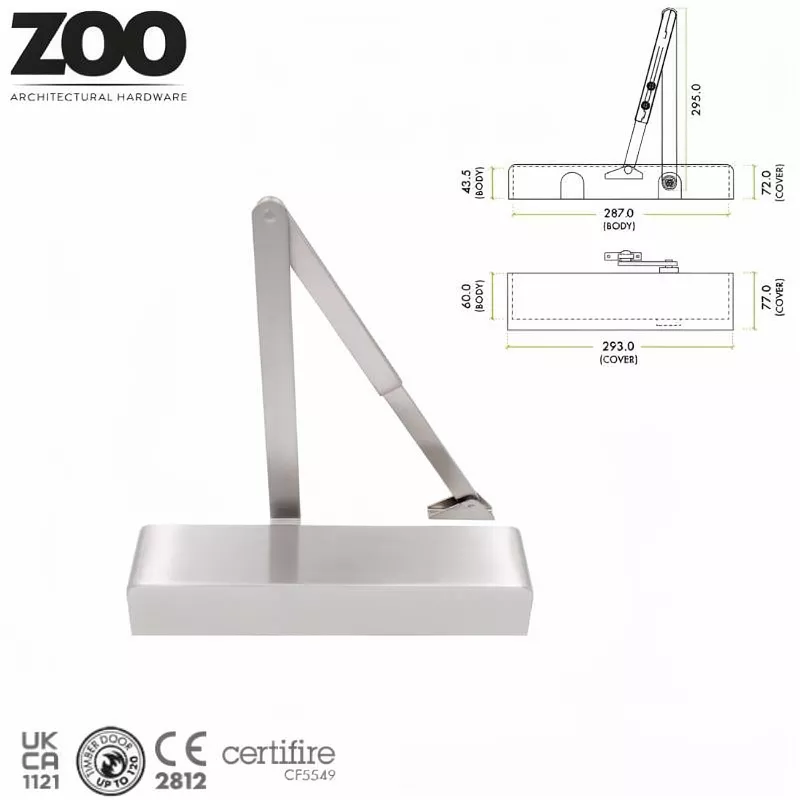

Zoo Door Closer ZDC0036 Adjustable Size 3 to 6

Description

Zoo Door Closer ZDC0036

Zoo Door Closer ZDC0036 Adjustable Size 3 to 6

KEY FEATURES:

Power size 3-6 (size 3 by template position size 4,5 and 6 by template position/ spring adjustment).
Aluminium.
Scissor/ Steel.
Closing speed, latching speed.
Backcheck/ delayed action.
120kgs (door mount pull) 100kgs (door mount push, frame mount push).
1400mm (door mount pull) 1250mm (door mount push, frame mount push).
Successfully tested in accordance with the requirements of BS EN1154: 1997.
Successfully fire tested in accordance with the requirements of BS EN1634-1, suitable for use on 30,60,90 and 120 minute timber fire doors.
Semi-radiused.
Silver (SE).
Satin Stainless (SSS).

PRODUCT FEATURES:

• Power size: Power size 3-6 (size 3 by template position size 4, 5 and 6 by template position/spring adjustment).
• Body material: Aluminium.
• Arm set type / material: Scissor / Steel.
• Tested functions: Closing speed, latching speed.
• Non-tested functions: Backcheck / delayed action NOTE: Backcheck / Delayed action are suitable for use on non-fire rated doors only.
• Maximum door weight: 120kgs (door mount pull) 100kgs (door mount push, frame mount push).
• Maximum door width: 1400mm (door mount pull) 1250mm (door mount push, frame mount push).
• Performance Testing: Successfully tested in accordance with the requirements of BS EN1154: 1997.

FIRE TESTING:

• Successfully fire tested in accordance with the requirements of BS EN1634-1, suitable for use on 30, 60, 90 and 120 minute timber fire doors.

CERTIFICATION:

• UKCA marked (Certificate AD7958)
• CE marked (Certificate AD7917)
• CERTIFIRE approved (Certificate CF5549)

COVER OPTIONS:

• Semi-radiused

FINISHES:

• Silver (SE)
• Satin Stainless Steel (SSS)
